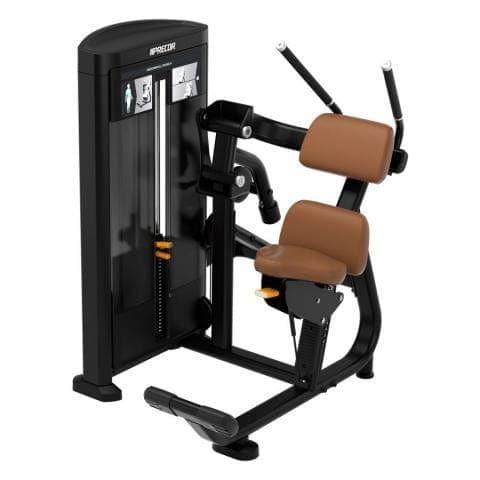

Precor Resolute Series Abdominal Crunch (RSL0714)
The Resolute Strength Ab Crunch maximizes abdominal muscle engagement for an effective and comfortable workout. Exercisers will have an easier start to their crunch with an assist from the counter-balanced pivot system.
- Movement arm design maximizes muscle engagement
- Elevated arm position for proper mechanics
- Foot platform to help stabilize user
[SPECIFICATION]
Equipment Features
| Weight Stack | Units have fully shrouded weight stacks in full compliance with ASTM and EN standards. Each selector plate is entirely precision-machined on all surfaces. Top plate has replaceable precision self-lubricating bushings. The plates feature a black painted protective finish. Guide rods are precision centerless ground, polished, with corrosion-resistant plating for smooth operation and rust retardation. The weight stack is elevated to facilitate user pin selection from seated position. |
| Upholstery | Premium-quality 3D urethane molded-foam padding for maximum comfort. Fabric meets or exceeds California fire regulations (Bulletin 117, section E). Automotive-grade, two-textured fabric features double top stitching on all seams. |
| Adjustable Seat | Yes, gas-assisted ratcheting seat adjustment |
| Adjustments | Gas -assist ratcheting seat adjustment requires only a lift to release the lever. Handles include slip-resistant rubber sleeves with machined alloy end-caps. Adjustment points are highlighted with a contrasting color for ease-of-use. |
| Instructional Placard | Easy to understand exercise placards feature large set-up and start and finish position diagrams that are visibly easy to identify. QR codes provide quick and easy video instruction from your smart phone. |
| Bearings and Pivot Points | Oversized, linear, re-circulating ball bearings run on case-hardened shafts and are sealed and self aligning. Pivot points and joints feature motor-grade sealed ball bearings, or sleeve bearings, utilizing either oil-impregnated bronze bushings or pre-lubricated nylon bushings. Bolts are grade 5 or above in all applications. |
| Water Bottle and Accessories Holder | The drink-and-accessory holder features large open, even surfaced area, easily accessible and easy to keep clean. |
| Pulleys and Cables | Glass-fiber-reinforced nylon pulleys provide strength and durability, while precision ball bearings allow effortless rotation. Cables use a 7x19 stranded wire configuration for added strength and flexibility and are coated with black pressure-extruded nylon for long lasting protection and a smooth feel. 3/16-inch (.48 cm) wire is coated to 1/4 inch (.64 cm) with a breaking strength of 4200 lb (1905 kg) and 1/8 inch (.32 cm) wire is coated to 3/16 inch (.48 cm) with a breaking strength of 2000 lb (907 kg). |
| Frame and Finish | The frame is 11 gauge (.120 in) 2x4"" electroweld steel racetrack tubing. Movement arms are made of electroweld steel round tubing. The five-stage material prep/wash process is followed by an electrostatically applied, heat-cured powder coat. |
| Bolt Down Capability | Yes |
| General Features | Arm, seat and back pad position secures the user and four bar linkage movement arm design maximizes abdominal muscle engagement. Foot brace allows users of all sizes to stabilize themselves during exercise. |
Equipment Specifications
| Standard Shroud Color | Black |
| Incremental Add-on Weight | 5 lb (2.3 kg) |
| Weight Stack | 160 lb / 73 kg |
| Workout Area (L x W) | 54 L x 51 W inches / 137 L x 130 W cm |
| Standard Frame Colors | Black Pearl; Gloss Metallic Silver |
| Stocked Upholstery Colors | All Spice, Black, Grey |
| Additional Upholstery Options (Additional lead time applies) | American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate |
Equipment Dimensions and Weight
| Length | 50 inches / 126 cm |
| Width | 47 inches / 118 cm |
| Height | 58 inches / 148 cm |
| Equipment Weight | 559 lb / 254 kg |
Shipping Dimensions and Weight
| Length | 52 inches / 132 cm |
| Width | 52 inches / 132 cm |
| Height | 61 inches / 155 cm |
| Shipping Weight | 633 lb / 288 kg |
Regulatory
| EN957 | Yes |
| ASTM | Yes |
The Resolute Strength Ab Crunch maximizes abdominal muscle engagement for an effective and comfortable workout. Exercisers will have an easier start to their crunch with an assist from the counter-balanced pivot system.
- Movement arm design maximizes muscle engagement
- Elevated arm position for proper mechanics
- Foot platform to help stabilize user
[SPECIFICATION]
Equipment Features
| Weight Stack | Units have fully shrouded weight stacks in full compliance with ASTM and EN standards. Each selector plate is entirely precision-machined on all surfaces. Top plate has replaceable precision self-lubricating bushings. The plates feature a black painted protective finish. Guide rods are precision centerless ground, polished, with corrosion-resistant plating for smooth operation and rust retardation. The weight stack is elevated to facilitate user pin selection from seated position. |
| Upholstery | Premium-quality 3D urethane molded-foam padding for maximum comfort. Fabric meets or exceeds California fire regulations (Bulletin 117, section E). Automotive-grade, two-textured fabric features double top stitching on all seams. |
| Adjustable Seat | Yes, gas-assisted ratcheting seat adjustment |
| Adjustments | Gas -assist ratcheting seat adjustment requires only a lift to release the lever. Handles include slip-resistant rubber sleeves with machined alloy end-caps. Adjustment points are highlighted with a contrasting color for ease-of-use. |
| Instructional Placard | Easy to understand exercise placards feature large set-up and start and finish position diagrams that are visibly easy to identify. QR codes provide quick and easy video instruction from your smart phone. |
| Bearings and Pivot Points | Oversized, linear, re-circulating ball bearings run on case-hardened shafts and are sealed and self aligning. Pivot points and joints feature motor-grade sealed ball bearings, or sleeve bearings, utilizing either oil-impregnated bronze bushings or pre-lubricated nylon bushings. Bolts are grade 5 or above in all applications. |
| Water Bottle and Accessories Holder | The drink-and-accessory holder features large open, even surfaced area, easily accessible and easy to keep clean. |
| Pulleys and Cables | Glass-fiber-reinforced nylon pulleys provide strength and durability, while precision ball bearings allow effortless rotation. Cables use a 7x19 stranded wire configuration for added strength and flexibility and are coated with black pressure-extruded nylon for long lasting protection and a smooth feel. 3/16-inch (.48 cm) wire is coated to 1/4 inch (.64 cm) with a breaking strength of 4200 lb (1905 kg) and 1/8 inch (.32 cm) wire is coated to 3/16 inch (.48 cm) with a breaking strength of 2000 lb (907 kg). |
| Frame and Finish | The frame is 11 gauge (.120 in) 2x4"" electroweld steel racetrack tubing. Movement arms are made of electroweld steel round tubing. The five-stage material prep/wash process is followed by an electrostatically applied, heat-cured powder coat. |
| Bolt Down Capability | Yes |
| General Features | Arm, seat and back pad position secures the user and four bar linkage movement arm design maximizes abdominal muscle engagement. Foot brace allows users of all sizes to stabilize themselves during exercise. |
Equipment Specifications
| Standard Shroud Color | Black |
| Incremental Add-on Weight | 5 lb (2.3 kg) |
| Weight Stack | 160 lb / 73 kg |
| Workout Area (L x W) | 54 L x 51 W inches / 137 L x 130 W cm |
| Standard Frame Colors | Black Pearl; Gloss Metallic Silver |
| Stocked Upholstery Colors | All Spice, Black, Grey |
| Additional Upholstery Options (Additional lead time applies) | American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate |
Equipment Dimensions and Weight
| Length | 50 inches / 126 cm |
| Width | 47 inches / 118 cm |
| Height | 58 inches / 148 cm |
| Equipment Weight | 559 lb / 254 kg |
Shipping Dimensions and Weight
| Length | 52 inches / 132 cm |
| Width | 52 inches / 132 cm |
| Height | 61 inches / 155 cm |
| Shipping Weight | 633 lb / 288 kg |
Regulatory
| EN957 | Yes |
| ASTM | Yes |
Select Frame | Pad Color
From $5,830.00
Precor Resolute Series Abdominal Crunch (RSL0714)—
$5,830.00
